Windows Phone Mango: Under the hood of Fast Application Switch

spin

Fast Application Switch of FAS is kind of tricky for application developers to handle. There are a ton of documentation around how the developers need to handle the various FAS related events. I really liked the video http://channel9.msdn.com/Events/DevDays/DevDays-2011-Netherlands/Devdays059 which walks through the entire FAS experience (jump to around 8:30).

In this post I want to talk about how the CLR (Common Language Runtime or .NET runtime) handles FAS and what that means to your application. Especially the Active –> Dormant –> Active flow. Most of the documentation/presentation quickly skips over this with the vague “The application is made dormant”. This is equivalent to the “witches use brooms to fly”. What is the navigation mechanism or how the broom is propelled are the more important questions which no one seems to answer (given the time of year, I just couldn’t resist :P) . Do note that most developers can just follow the coding guidelines for FAS and never need to care about this. However, a few developers, especially the ones developing multi-threaded apps and using threading primitives may need to care about this. And hence this post

Design Principle

The entire Multi-threading design was made to ensure the following

Principle 1: Pre-existing WP7 apps shouldn’t break on Mango.
Principle 2: When an application is sent to the background it shouldn’t consume any resources
Principle 3: Application should be resumed fast (hence the name FAS)

As you’d see that these played a vital role in the design being discussed below.

States

The states an application goes through is documented in http://msdn.microsoft.com/en-us/library/ff817008(VS.92).aspx

Execution Model Diagram for Windows Phone 7.5

CLR Design

The diagram below captures the various phase that are used to rundown the application to make it dormant and later re-activated.  It gives the flow of an application as it goes through the Active –> Dormant –> Active state (e.g. the application was running and the user launches another application and then uses the back button to go back to the first application).


Deactivated

The Deactivated event is sent to the application to notify it that the user is navigating away from the application. After this there is 3 possible outcomes. It will either remain dormant, gets tombstoned or finally gets killed as well. Since there is no way to know which would happen, the application should store its transient state into the PhoneApplicationPage.State and it’s persistent state into some persistent store like the IsolatedStorage or even in the cloud. However, do note that the application has 10 seconds to handle the Deactivated event. In the 3 possible situations this is how the stored data will be used back

  1. Deactivate –> Dormant –> Active
    In this situation the entire process was intact in memory and just it’s execution was stopped (more about it below). In the Activated event the application can just check the IsApplicationInstancePreserved property. If this is true then the application is coming back from Dormant state and can just use the in-memory state. Nothing needs to be re-read in.
  2. Deactivate –> Dormant –> Tombstoned –> Active
    In this case the application’s in-memory state is gone. However, the PhoneApplicationPage.State is serialized back. So the application should read persistent user data from IsolatedStorage or other permanent sources in the Activated event. At the same time it case use the PhoneApplicationPage.State in the OnNavigatedTo event.
  3. Deactivate –> Dormant –> Terminated
    This case is no different from the application being re-launched. So in the Launching event the user data needs to be re-created from the permanent store. PhoneApplicationPage.State  is empty in this case

The above supports the #1 principle of not breaking pre-existing WP7 apps. A WP7 app would’ve been designed without considering the dormant stage. Hence it would’ve just skipped the #1 option. So the only issue will be that a WP7 app will result in re-creating the application state each time and not get the benefit of the Dormant stage (it will get the performance of Tombstoning but not break in Mango).

Post this event the main thread never transitions to user code (e.g. no events are triggered). The requirement on the application for deactivate is that

  1. It shouldn’t run any user code post this point. This means it should voluntarily stop background threads, cancel timers it started and so on
  2. This event needs to be handled in 10 seconds

If app continues to run code, e.g. in another thread and modifies any application state then that state cannot be persisted (as there will be no subsequent Deactivated type event)

Paused

This event is an internal event that is not visible to the application. If the application adhered to the above guideline it shouldn’t care about it anyway.

The CLR does some interesting stuff on this event. Adhering to the “no resource consumption” principle is very important. Consider that the application had used ManualResetEvent.WaitOne(timeout). Now this timeout can expire in the time when the application was dormant. If that happened it would result in some code running when the application is dormant. This is not acceptable because the phone maybe behind locked screen and this context switch can get the phone out of a low-power state. To handle this the runtime detaches Waits, Thread.Sleep at Paused. Also it cancels all Timers so that no Timer callbacks happen post this Pause event.

Since Pause event is not visible to the application, it should consider that some time post Deactivated this detach will happen. This is completely transparent to user code. As far as the user code is considered, it just that these handles do not timeout or sleeps do not return during the time the application is dormant. The same WaitHandle objects or Thread.Sleeps start working as is after the application is activated (more about timeout adjustment below).

This is also the place where other parts of the tear-down happens. E.g. things like asynchronous network calls cancelled, media is stopped.

Note that the background user threads can continue to execute. Obviously that is a problem because the user code is supposed to voluntarily stop them at Deactivated.

Freeze

Besides user code there are a lot of other managed code running in the system. These include but not limited to Silverlight managed code, XNA managed code. Sometime after Paused all managed code is required to stop. This is called the CLRFreeze. At this point the CLR freezes or blocks all managed execution including user background threads. To do that it uses the same mechanism as used for foreground GC. In a later post I’d cover the different mechanics NETCF and desktop CLR uses to stop managed execution.

Around freeze the application enters the Dormant stage where it’s in 0 CPU utilization mode.

Thaw

Managed threads stopped at Freeze are re-started at this point.

Resuming

At Resuming the WaitHandle, Thread.Sleep detached in Paused is re-attached. Also timeout adjustments are made during this time. Consider that the user had two handles on which the user code started Waits with 5 seconds and 10 seconds timeouts. After 3 seconds of starting the Waits the application is made dormant. When the application is re-activated, the Waits are restarted with the amount of timeout remaining at the point of the application getting deactivated. So essentially in the case below the first Wait is restarted with 2 seconds and the later with 7. This ensures that relative gap between Sleeps, Waits are maintained.


Note timers are still not restarted.

Activated

This is the event that the application gets and it is required to re-build it’s state when the activation is from Tombstone or just re-use the state in memory when the activation is from Dormant stage.

Resumed

This is the final stage or FAS. This is where the CLR restarts the Timers. The idea behind the late start of timers is that they are essentially asynchronous callbacks. So the callbacks are not sent until the application is activated (built its state) and ready to consume those callbacks.

Conclusion

  1. Ideally application developer needs to take care of the FAS by properly supporting the various events like Deactivated, Activated
  2. Background threads continue to run post the Deactivated event. This might lead to issues by corrupting application state and losing state changes. Handle this by terminating the background threads at Deactivated
  3. While making application dormant Waits, Sleeps and Timers are deactivated. They are later activated with timeout adjustments. This happens transparently to user code
  4. Not all waiting primitives are time adjusted. E.g. Thread.Join(timeout) is not adjusted.

Tuesday, August 02, 2011

The C Word

pic

I have really thought a lot over posting this. This is a very personal post. I could either keep it to myself or share this to let others going through the same know its OK to be scared. If you are here to read about programming and other fun stuff, go save yourself some time and skip this post.

The three week of wait

My wife was having a low-grade fever for 3 weeks. Unfortunately it coincided with a number of small symptoms. This made the spine specialist diagnose a slightly herniated disc, the internal medicine doctor diagnosed some sort of infection and the allergist a pain killer (Diclofenac) related allergy. Later when nothing seemed to clear it up, we were told its most likely an auto-immune disease. Test after test revealed nothing other than an elevated ESR and CPT. Apparently there was an inflammation going on inside her body. This is when we decided to cancel her home trip to India as the 24 hour travel was simply not possible with the back pain associated with the herniated disc.

All this while the doctor’s kept going by the book. I feel this is something to do with the fact that doctors in the US are forced to be in a state of perfect equilibrium due to the opposing forces of lawsuits from patients (doctor didn’t do enough) and push-back from insurance companies (doctor is doing too much). We were told time and again since her fever is not over 101F and it’s not been there for more than 3 weeks, there is no further testing required. Read up Mayo-clinic or Wikipedia on Fever of Unknown Origin and you’d see this as the criteria for getting concerned. However, my wife all the while could easily tell that something else was going on and she is feeling different. In other countries the doctors would have run atleast a chest X-ray by this time. IMO the risk of additional radiation was easily worth it given her condition.

By this time we had been to five specialists and were waiting for the sixth, the rheumatologist to make the final diagnosis of some auto-immune disease. The spine specialist grudgingly decided to do an additional MRI (the second) of her entire pelvis. We went for that second MRI on Saturday 7/23/2011. Our primary care physician however, was worried. He kept calling us to enquire how she was feeling. While on the way back from the MRI, he called us up again and asked us to come visit him on Monday, for further evaluation and maybe some full body scan. We could feel the edge in his voice. May he be blessed for the care he showed.

We were learning that the hardest part of being patients was really to have the patience.

The end of wait

We went home and I asked my wife to try some Yoga breathing exercises called Pranayama. She tried that and went to sleep. At this point in time we crossed the 3 weeks threshold and thankfully her fever crossed the 101F mark. Next day was a Sunday. She woke up feeling worse and had a weird feeling in her chest and a huge rash on her leg. Really worried we rushed to the Bellevue Overlake ER room.

Within minutes her vitals were checked and she was put on a bed. The doctor re-diagnosed some auto-immune disease and setup an appointment for the next day. Then he did something which should’ve been done weeks earlier, ordered a chest X-ray. He left the room and went to casually check the x-ray, then came rushing back.

He asked my wife when she had the last X-ray. It was in 2007. The doctor’s face told us something is terribly wrong. He said there is a tumor in-between her heart and lungs. Clinically it looks like a Lymphoma. My wife responded by a Vasovagal response. Which essentially means she had a fit, fainted and her pressure hit 45/60 and pulse was at 40. Somehow for me everything slowed down, as if life was on slow-motion. I could process everything going around, I could talk to the doctor and figure out the next steps. No idea how I pulled that off. Our life changed at that very point. The C word entered our lives. I thanked myself for asking her to do the breathing exercise, which exercised her lungs enough to surface the discomfort that sent us to the ER. Her left lung was only half opening due to the tennis ball sized tumor.

She had a CAT scan within 10 minutes. Now we had the 3D image of the tumor, it looked like a Lymphoma to the doctor. I sat with him for 15 minutes seeing the slides myself. I asked all the questions I could think off. Biopsies were ordered and we headed home, in stunned silence. She was only 34 and was perfectly healthy 3 weeks back, travelling across Washington to Palouse.

The kind words provided by the ER doctor provided too little to console my wife. However, I vaguely remember coming home, ordering a bunch of camera equipment for portrait photography and the Kindle version of the book The Emperor of All Maladies: A Biography of Cancer. The book was recommended by the ER doctor while talking about how much cancer medicine has progressed. This is a Pulitzer winning work by another bong Siddhartha Mukherjee who seemed to have poor skills in choosing and hence studied in all of Stanford, Oxford, Columbia and Harvard.

I really have no idea why I bought those stuff and didn’t even remember do so until I got some emails informing me that I have indeed ordered them.

Beginning of waiting again

The very next day Monday 7/25/2011 the Oncologist called us, and he told that he has setup the first set of fine needle aspiration Biopsy (FNAC). As my wife was in the Radiology room getting her Biopsy done, I got the phone call from the spine specialist. Remember he ordered a pelvic MRI on Friday. He started by saying he sees some abnormality on the sacral bone. I told him about the Lymphoma and he said, they should be related and asked for the contact info of our Oncologist.

So now Cancer has spread as well. For the first time in my life I publicly broke down sobbing un-controllably in the Overlake Hospital Café. I then rushed up to meet our oncologist for the first time and handed over the MRI discs to him.

Two days later on Wednesday 7/27/2011 we got to know that not enough tissue was available from the biopsy. They can see the abnormal cancer tissue but for further sub-typing they need to have more samples. So Biopsy of the sacral bone was ordered as well. Thursday we got that done. The doctor called us many times letting us know of the progress and that the best lab in NW in Seattle is going through the slides. Finally we got the full diagnosis of Nodular Sclerosing Hodgkin’s Lymphoma and it’s Stage IV.

Then on advice from friends we looked up Seattle Cancer Care Alliance and we are going there for treatment. Right now they are relooking at all the cytology slides to re-confirm the disease and my wife is going through a bank of tests to ensure she is ready for the chemo that’s going to start in the next week.

My wife want’s to know why it took the most advanced medical system in the world, 4 weeks for the diagnosis, especially when the test required was just a chest X-ray. All the while five doctors chose to just wait around when she could exactly point with her finger the point on her spine where the second cancer tumor was. Why was it not caught in her last yearly exam? The reason was simple even the basic tests are not done in the US in yearly exams. I am sure it’s something to do with the costs. In India a yearly exam is extremely thorough. I am sure they go overboard and expose people to X-ray and such but in case this was still going on, it’d surely have been caught.

However, once this was diagnosed things started moving extremely swiftly. Doctors kept calling other doctors and pathologists. Multiple people were examining and cross examining the CT video and cytology slides. Doctors were calling us back to let us know of the progress and telling us to be brave.

How are we coping

I have known my wife for the last 50% of my life. She was my high-school friend, and we fell in love just before moving onto college. Marrying high-school sweet heart has it pros and cons. She knows all my crushes and flings which I foolishly confided in a friend who turned into a wife later :). She has been there hand-holding and steering me through all the while. She stood beside me and continually, supported me as I rose from an average student in an unknown college to get into the top 10 in the university. I completed my BS-Physics and then chose Computer Science, she was beside me in the queue to submit the application. She was hanging out in the hotel lobby when I interviewed with Microsoft 7 years back in Delhi. She was always there.

After getting my first job in Texas Instruments I just couldn’t cope with the distance. We got married in 3 months and she joined me in Bangalore after 3 more months. We had by that time known each other for 6 years. Our 10th marriage anniversary is just 6 months away. We are going to hit 16 years of togetherness. In this time we have moved homes across 3 cities in India, moved across the oceans and settled in US. Had our daughter who is 6 year old. In this time she had lost her mother to cancer and I lost my father to COPD and my thyroid due to suspected cancer tumors. So we have/had a roller coaster ride, a ride we thoroughly enjoyed.

Role Reversal

Now the roles have reversed. It’s now my turn to fight the battle and steer her through. Unfortunately the human body is not just a computer for which I could write a garbage collector to go cleanup all the garbage-cells. I am used to have all the nodes of the decision tree fully expanded. Mistakes usually involves retracing ones step and re-routing. Both of these don’t work in this situation.

However, I plan to be agile, do my research and work with the doctors to provide the best care my wife can get. I will surely learn a lot of lessons of life on the way

Time to count the blessings

While I can crib about how life is unfair and how this shouldn’t be happening to me. But that doesn’t really add value. When I look around I can actually see a lot of blessings that’s been showered on us. I also learnt that this is the time to move pride out of the way and ask for help, there are so many around us who just need the cue to do something

  1. We have had a great live together. Frankly there is no good time to get a disease like Cancer. It’s not as if at 60 we’d be ready. One is never ready and this timing is as bad as any other.
  2. Our daughter holds our sanity together. Whenever we get all bogged down she comes up with the weirdest question which becomes thrice as funny when asked by someone missing three of her front tooth.
  3. We literally haven’t cooked food for the last 4 weeks. There’s always been one neighbor or friend coming to our house with something to eat. People whom we know for barely weeks have been there for us. So it’s idly-sambhar for breakfast and paratha with alloo-gobi in dinner.
  4. We have never had to get a sitter or drop our daughter to the day-care as we rush from one hospital to another, she has always been to one of her friends on a play-date, little aware of the turmoil we are going though.
  5. We just had to ask for a change of apartment (one with elevator access). The management team of the community we live in, attacked this issue with full force. They’ve made so many exceptions to make things easy for us, that I cannot thank them more
  6. Thankfully we chose to come to US. One of the world’s best cancer research center is just 30 minutes from where I live
  7. I have one of the best employers in the world. Microsoft’s medical insurance have been phenomenal till now. I feel sad that it’s not going to be that great from 2013 (change in policy)
  8. My manager has been super supportive. I’ve given many weekends and nights to work, to pull off deadlines. Now it seems so worthwhile.

What am I asking for

Nothing really. If you are religious, just pray to whomever you believe in to give us strength to pull us through. This post was just so that I can get this whole thing out of my system and concentrate on solving the issue at hand. If you are a friend or family just bear with me if I am suddenly withdrawn of plain irritating.

Monday, July 04, 2011

Palouse Photography Trip

From Wikipedia, “The Palouse is a region of the northwestern United States, encompassing parts of southeastern Washington, north central Idaho and, in some definitions, extending south into northeast Oregon. It is a major agricultural area, primarily producing wheat and legumes”. But that doesn’t really tell you what Palouse is :). My daughter named it more aptly as Greenland and the photo below is explanatory.



It’s a beautiful land of rolling green (or Yellow based on season) hills and a photographer’s delight. It’s one of the most beautiful landscape I have ever seen. It’s easily worth the 5-6 hour drive from Western Washington cities like Seattle. The receptionist at the hotel we stayed in said that they’ve had photographers from as far as Australia visit them.

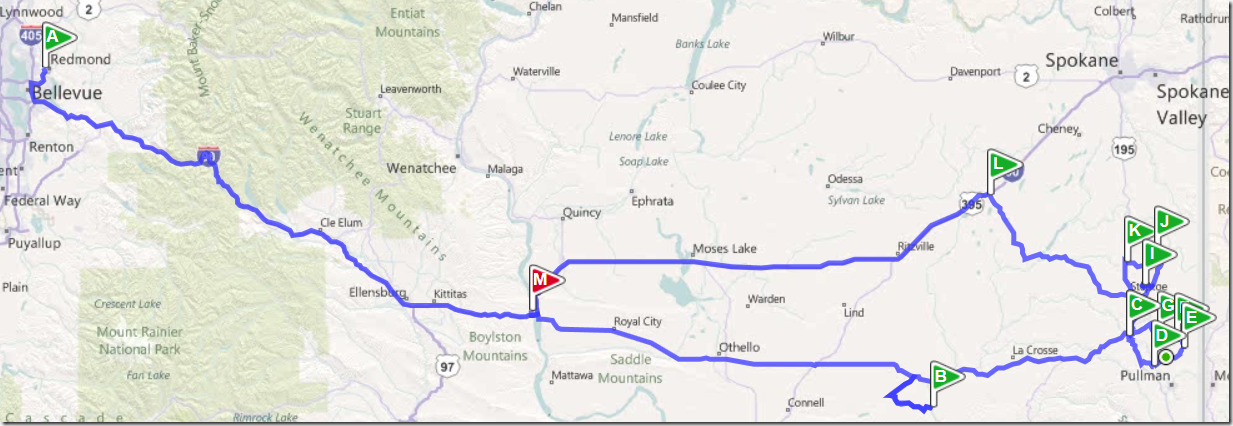

Last week (6/16/2011) I went on a 2 day trip to the Palouse area in Eastern Washington. The primary plan was to just drive around and take some great shots. This post captures the quick details about what went right, what went wrong and some tips about how to make the trip family friendly.

Good Time to Visit

I asked around and checked Flickr for Palouse photos from different times of the year. I think early to mid June is pretty good time to see the excellent green colors in the field. August is great for capturing the golden yellow pre-harvest colors.

Where to Go

My agenda was to cover Palouse water falls, the Colfax-Steptoe-Garfield-Palouse-Pullman pentagon. I took the following route. Click around to see the main routes travelled.


On the Way

Palouse waterfallOn the way (and back) you should stop at the great I90 rest areas. They are spread around every 30-40miles and there are blue signs on the way indicating where they are (e.g. Rest Area Next Right) and how far the next one is (Next Rest Area 34 miles). Many of these serve free free hot coffee and cookies and all of them have rest rooms. After gorging on the super hot coffee and home made cookies made by dear old ladies who run these places, do remember to generously donate in the donation boxes. We carried our camping stove and had some nice warm noddle soup for lunch at the rest area.

Palouse waterfall, furry friendWe then stopped at the Palouse falls (B in the map). As with most remote sites with dirt roads, the GPS picked up some really bad roads for the routing (Nunamaker Rd). Avoid this road and follow the signs and the route showed in the map which is to avoid Nunamaker Rd and continue straight on 260 and take a left onto 261. This goes into the Palouse Falls State Park. The Park has around 10 campsites and has a huge waterfall plummeting down 190ft. Covered picnic shelter with tables, water and barbeque pits are available here. The camp sites are first come only and there is a resident host as well. There is water but no power hookup at the sites. There are some short hiking opportunities as well where you can hike 0.5 miles up towards the waterfall top. However, do note that the hiking routes have some points where there is significant exposure to heights and you gotta be very careful. There is also no safe way to descend to the bottom of the falls even though there seems to be some trails that go down.

There are a lot of cute Marmots and a lot of huge insects and snakes all around.

The Palouse

Palouse Old barnWe didn’t stay in the Falls area. Instead we went ahead to Colfax which is around an hour away. I really liked the Best Western Wheatland Inn at Colfax where we stayed. We paid around $110 for the night. It had a nice hot breakfast, good rooms with TV and a nice warm indoor swimming pool. I cared about these because my wife and kid would spend a lot of time indoors as I’d drive around on the dirt roads for the next day or so. Just opposite to the hotel was a store, Taco Bell, Subway and other eating joints. I have had other friends who stayed in Pullman (30mins south of Colfax) which has many more hotel options because it’s the house to Washington State University. However, I ‘d recommend staying in Colfax due to it’s proximity to Steptoe butte and other interesting areas.

Palouse from Steptoe ButteAfter checking in I went to the Steptoe Butte for the customary Sunset shot, which however was utterly ruined due to rains and clouds. Steptoe Butte is a very important geological feature and a must visit. So much so that other geological features of it’s type is called steptoes. Steptoe is a 400 million year old rock sticking up high over the rolling hills of Palouse. Amazing views of light and shadow on the Palouse and patterns of wheat harvest can be seen from top.

Post sunset I got back to the hotel. Next day morning I mainly drove around inside the Pentagon. Then came back for some lunch in the hotel. Then again after some driving around headed back via I90.

Palouse run down barnTo drive around the key thing to remember is that all state routes have almost no shoulders and no place to stop. So even if one route offers a good view, you cannot stop to photograph. Also the broken down barns are not really on the main routes. So you need to pick up the dirt roads and drive on them. These are gravel roads and cars skid a lot on them. So a 4x4 car is a good thing to have but not really mandatory. The route I mainly drove on is in the map linked above. However, they show the main route taken, you’d need to continually divert from them to get to the side roads as well.

  1. Palouse colors

Some nice roads to try

  1. Palouse Alboin Road. Get into the side roads for broken garages and barns
  2. I tried and really liked the Chief Kamiakin Park >Fugate Road > S Palouse River Rd. However,
  3. Hume Road (From SR 195 to Oaksdale)

The photographs at http://www.flickr.com/photos/abhinaba/sets/72157626870022427 are manually geocoded, so that should give an approximate idea on where they were taken.

The Way Back

We came back via a different route because we were already close to Oakesdale and were told that the road from there to I90 had some nice views. We took the Oakesdale > Thornton > St. John > Sprague > Seattle via I90 West route.

Palouse farming planesWe did make some stops on the way back. One was the scenic viewpoint just before crossing the Columbia river gorge. The other was the Ginkgo Petrified Forest State Park Visitor center. This is just after the gorge. It contains some fantastic samples of petrified tree trunks where Ginkgo trees have been transformed to rocks (silica) after being covered by lava flows some 15 million years back. Also from the interpretive center you can see the banks of the Columbia river. We had some fun counting the layers of Lava visible on the banks where each layer corresponds to a major lava-flow incident millions of years back.

Back Home

The trip was awesome and covered 400 million year old rocks, 15 million year old tree trucks, 3 month old crops and everything in between. I plan to go back again to capture the Golden hues of the pre-harvest crops soon.

Friday, June 24, 2011

Secure Conversion of your personal Microsoft Office Documents to Kindle

Farming plane in Palouse, WA

I love my Kindle 3 and really enjoy it’s readability and portability. However, a lot of my reading is confidential docs and papers which don’t come off the Kindle store. I had to spend some time to figure out the best way to get those onto Kindle securely. Since I use the latest Microsoft document formats (docx) a bunch of the commonly referred tools like Calibre didn’t work for me.

In case you are not worried about security and do not mind sending your document to Amazon for free conversion and transfer to your kindle, then just visit http://www.amazon.com/gp/help/customer/display.html?nodeId=200375630 and thanks for stopping by on this blog Smile

However, in case the document is confidential and you don’t want to send it to Amazon read on

Using PDF

Kindle 3 supports PDF natively. So you can just transfer a PDF to it by connecting the Kindle to your PC over USB. Save the document to pdf using say Microsoft office save to PDF (File –> Save As (format PDF)) and then attach your kindle to the PC, it will show up as a Removable Storage drive and you can copy the PDF to it.

However, the document might turn out with tiny text and you’d need to scroll all around on the Kindle to view it. This is far from being acceptable and I use the following steps to get around that.

Install CurePDF writer from http://cutepdf.com/Products/CutePDF/writer.asp. This installs a virtual printer to your PC called “CutePDF Writer”. Now print any document to this printer (File –> Print) and it will create a pdf file on your computer. While printing I use the following settings

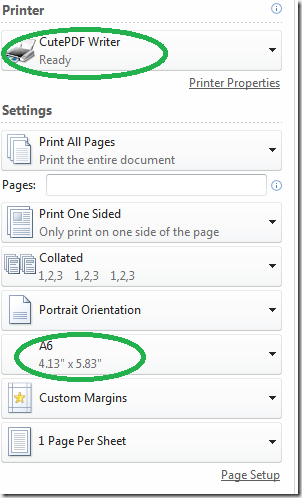

I use a small page size of A6 to ensure good readability on the Kindle. Once you click on the Print button CutePDF shows a file save as dialog using which you can directly point it to the attached Kindle storage drive. Experiment for what page size works best for the particular kind of document and Kindle you have (plain vs Dx).

Using MobiPocket Creator

Download MobiPocket Creator from http://www.mobipocket.com/en/DownloadSoft/ProductDetailsCreator.asp.  Launch MobiPocket and then click on Import –> MS Word Document


Use the browse button to choose the document, in the file open dialog choose the document. However, do note that you may need to change the File type filter to *.* and not *.doc if you are opening the latest docx format


Once you have selected the document click on Import. This will get the document imported to MobiPocket.

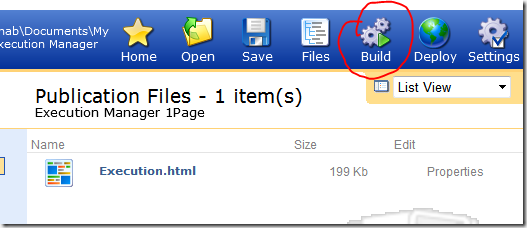

Click on Build and then “Open folder containing eBook” and click OK. From the folder that opens copy the *.opf and *.prc to the Kindle’s document folder. Detach the kindle from the PC. The document should show up on the Kindle home screen.
